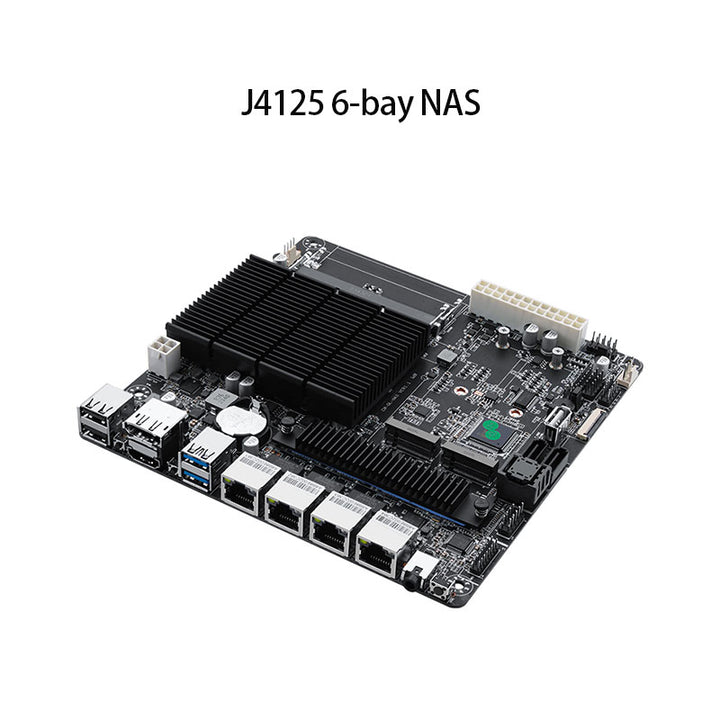

SynthDisk J4125 4x Intel i226-V 2.5G Nics NAS Motherboard 2x M.2 NVMe Six SATA3.0 2*DDR4 HDMI2.0 DP Mini ITX board type motherboard

$183.89 $147.11

Model: J4125-NAS Motherboard

J4125-NAS Motherboard

Type: No RAM No SSD

No RAM No SSD

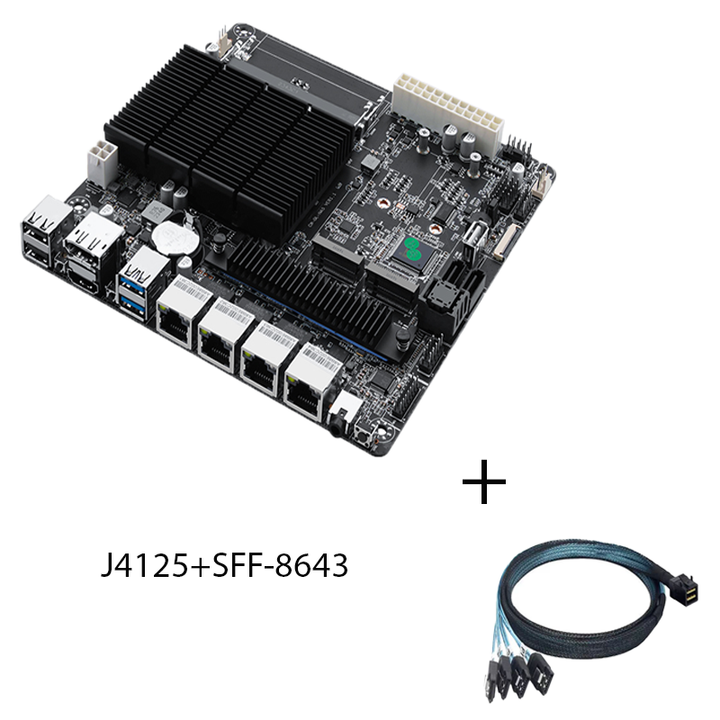

No RAM No SSD+SFF-8643 line
4G RAM 128G SSD
8G RAM 128G SSD
8G RAM 256G SSD
16G RAM 256G SSD
16G RAM 512G SSD
16G RAM 1TB SSD
32G RAM 256G SSD
32G RAM 512G SSD
32G RAM 1TB SSD
32G RAM 2TB SSD

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
SKU :
Disponibilité : En stock Pré-commande Épuisé
Catégories : Home NAS New In
Description

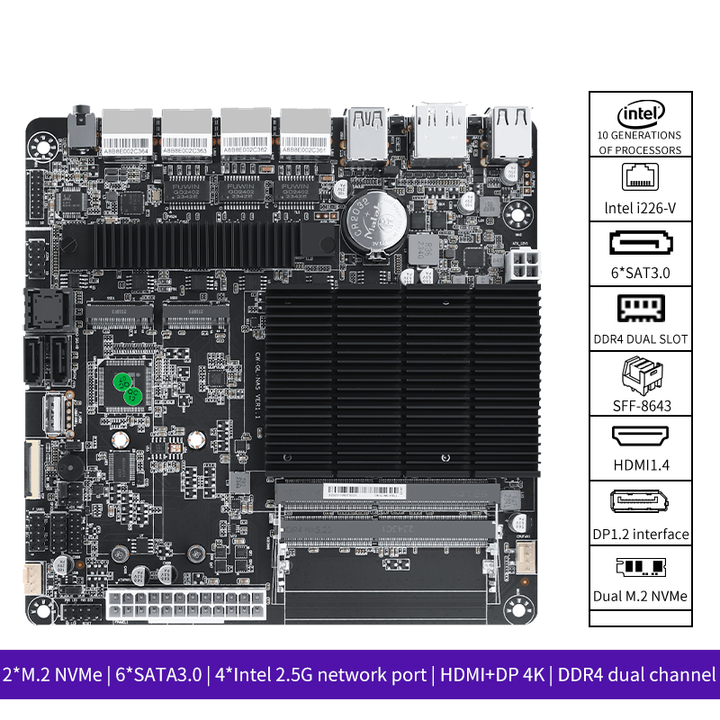

Motherboard core features
Intel® 10th Generation Gemini Lake Refresh Quad-Core Processors
Large-area aluminum flake CPU cooling fanless low-power passive cooling design
Standard 17x17 Mini-ITX form factor ATX standard 24+4PIN power supply
2 M.2 NVMe The second M.2 slot shares the signal with the LAN4 network port. Choose one of the two
Onboard (ASM1064 chip) transfers out 4 SATA3.0 6Gbps hard disk interfaces
Native 2 SATA SFF-8643 terminals support 1 drag 4 out of 4 SATA, a total of 6 SATA
4 Intel i226-V 2.5G network card chips
2 SO-DIMM DDR4 memory slots compatible with 2400/2666MHz
1 DP1.2 supports 4K@60Hz + 1 HDMI 1.4 supports dual display 4K@30Hz
2 USB2.0+2 USB3.0+ built-in one USB2.0 socket


Specifications
Motherboard features:
Matte black PCB
High-density moisture-free fiber 8-layer circuit board
Full protection (supports all USB, audio sources, and network interfaces)

processor:
Intel® Gemini Lake N4000 2 (Threads:2) 4M Cache, Up to 2.6GHz
Intel® Gemini Lake J4105 4 (Threads:4) 4M Cache,Up to 2.5 GHz
Intel® Gemini Lake J4125 4 (Threads:4) 4M Cache,Up to 2.7 GHz

Memory:
Support notebook DDR4 memory technology
2*SO-DIMM DDR4 memory slot
Compatible with DDR4 2133/2400/2666MHz (non-ECC)
Maximum capacity of a single memory: 16GB

TDP: 9-15W

storage:
1*SFF-8643 supports 1 to 4 SATA
2*M.2 NVMe x1 signal (2280)
SATA1-2 ports are native interfaces

Network card: 4*Intel i226-V 2.5G RJ45 network port

Graphics card:
N4000 Integrated Intel® Ultra HD Graphics 600;12EU
J4105 Integrated Intel® Ultra HD Graphics 600;12EU
J4125 Integrated Intel® Ultra HD Graphics 600;12EU
HDMI 1.4 interface supports 4K@30Hz
DP 1.2 interface supports 4K@60Hz

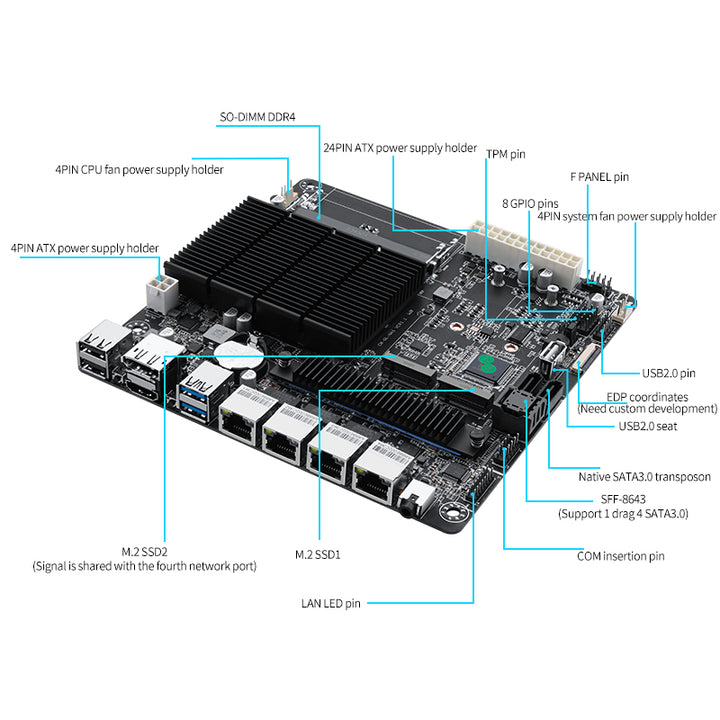

Onboard interface:
1*FPANEL pin
1*TPM pin (compatible with 14-pin-SPI ASUS TPM module)
1*USB2.0 pin
1*8 GPIO pins
1*COM pin
1*LAN LED pin
1*CPU_FAN CPU fan 4pin socket (with temperature control)
1*SYS_FAN system fan 4pin socket (with temperature control)
1*24+4 ATX power interface
1*USB2.0 socket (vertical set of USB2.0)
1*EDP seat (needs custom development)

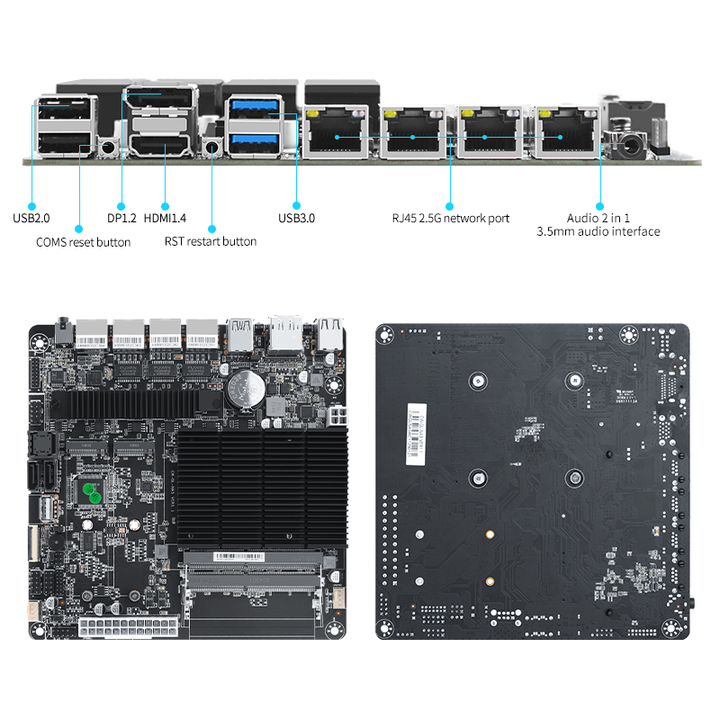

IO panel:
2*USB2.0
1*On/off button
2*USB3.0
1*RST restart/GPIO button
1*HDMI
1*DP
4*RJ45 2.5G network port
1*AUDIO combo—3.5mm audio interface

structure:
MINI-ITX specifications; 6.7-in x 6.7-in, 17.0cm x 17.0cm
All solid capacitor design
Power supply

Power supply:
ITX/ATX 24PIN+4PIN power supply
4 hard drives Power supply requirement Rated power: 150W (or higher)
6 hard drives Power requirement Rated power: 240W (or higher)

operating system:
Compatible with Windows 10/11 (X86_X64)
Support Linux (CentOS/Ubuntu/Debian)
Support Legacy+UEFI boot mode
Support wake-on-LAN/watchdog
Additional Information
Model

J4125-NAS Motherboard

Type

No RAM No SSD, No RAM No SSD+SFF-8643 line, 4G RAM 128G SSD, 8G RAM 128G SSD, 8G RAM 256G SSD, 16G RAM 256G SSD, 16G RAM 512G SSD, 16G RAM 1TB SSD, 32G RAM 256G SSD, 32G RAM 512G SSD, 32G RAM 1TB SSD, 32G RAM 2TB SSD
