SynthDisk Magic Computer N200/i3-N305 small host PCIe x8 slot 4NVme supports expansion of 2x10G network card DIY players’ new favorite 3D printing
Description
Motherboard core features:
Based on Intel 12th generation Alder Lake-N N100/octa-core 13-N305 low-power platform

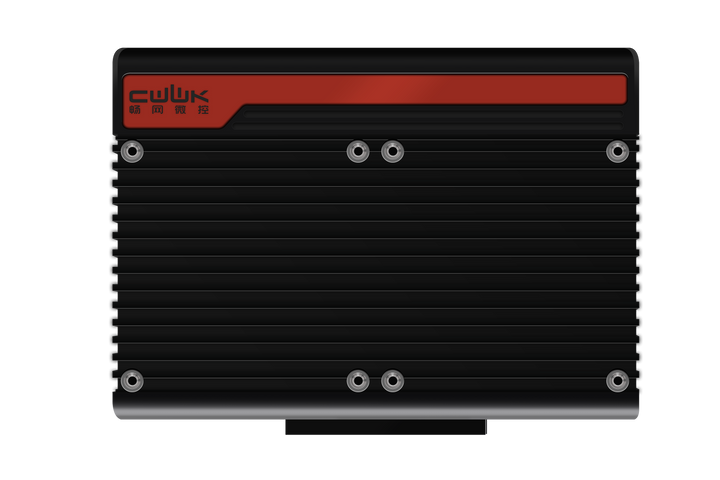

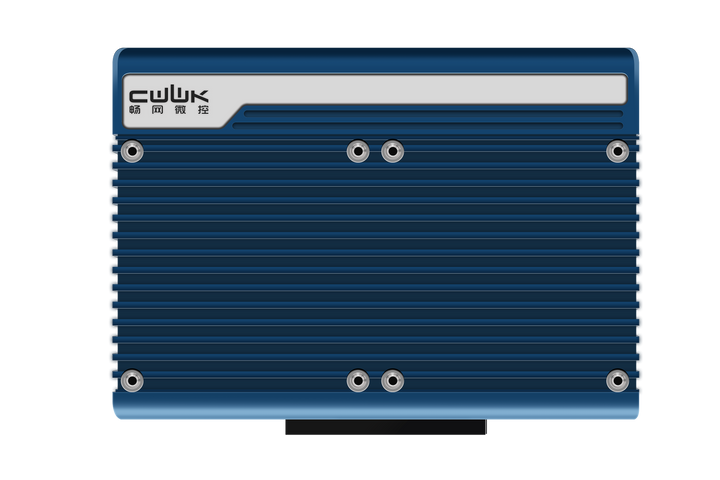

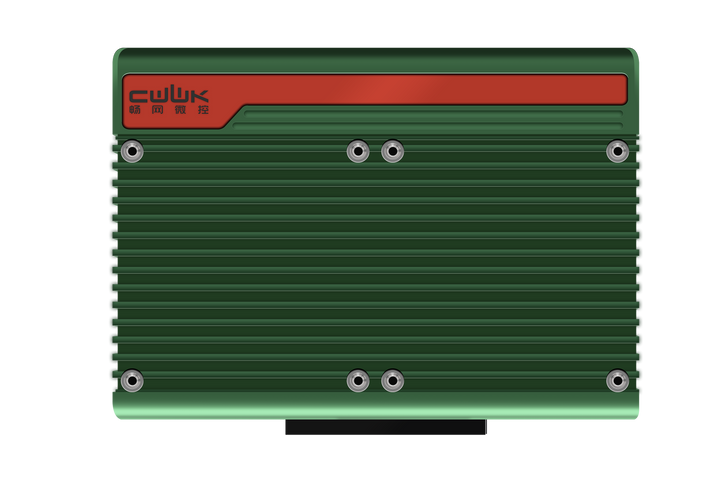

Passive cooling, open design, open source drawings, specially designed for DIY/3D printing enthusiasts
A PCl-e x8 socket (PCle3.0 x4 signal) supports various network cards, hard drives and other expansions
Dual HDMI+DP+Type-C four display interfaces, supporting three-screen synchronous/asynchronous display
Dual intel i226-V integrated filter 2.5G RJ45 network port
1 SO-DIMM DDR5 slot compatible with 4800/5200/5600MHz
1 M.2NVMe socket (PCle3.0 x1 signal) compatible with 2242/2280 size
Dual SATA3.0 (6GB/s interface) dual 4pin power supply supports 2.5/3.5-inch hard drive
A TF card slot supports data storage and some system startup and boot functions
A 4-pin fan power supply socket supports temperature-controlled fans and a small 3-pin fan power supply socket
Specifications:

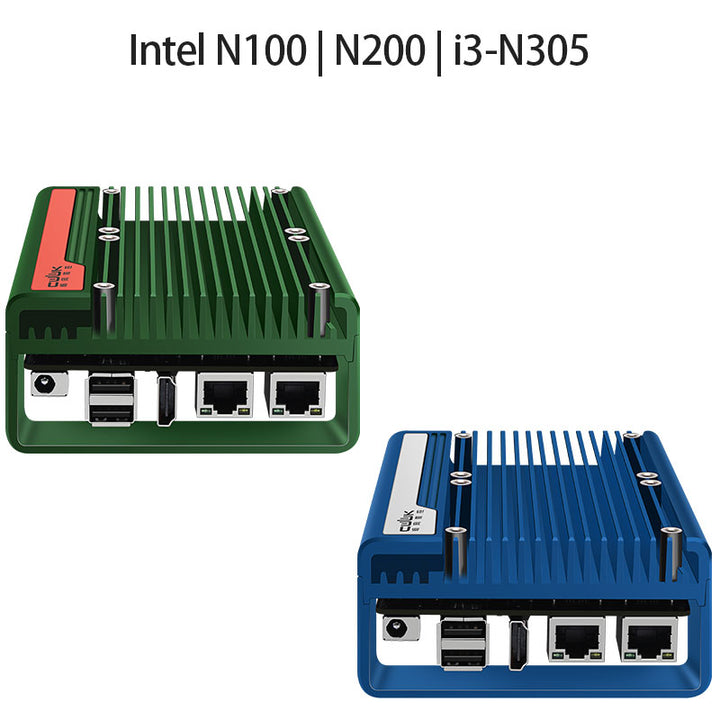

Processor: Intel N100/N200/i3-N305
Codename: Elkhart Lake
Display chip: Integrated 10th generation Intel Super Core graphics card
Display output: 2*HDMI1.4 1*DP 1*Type-C
Memory slot: 1*SO-DIMM DDR5 compatible with 4800/5200/5600MHZ
I/0 chip: IT8784E-i
USB: 4*USB2.0
Power supply: DC12V-19V (5.5*2.5)
Network card: 2*Intel i226-V 2.5G EJ45
Storage: 1*M.2 NVMe (PCle3.0x1 signal) 2*SATA3.0 (6GB/S interface) 1*TF

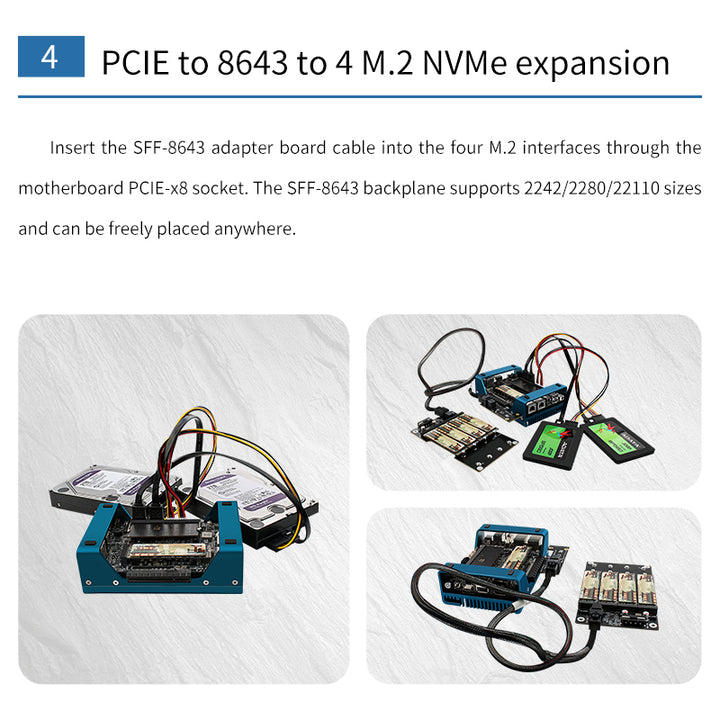

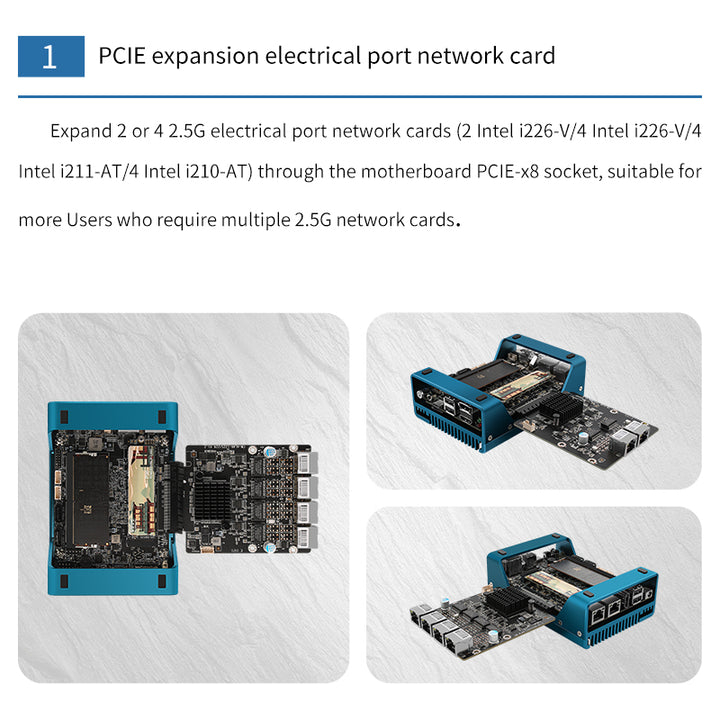

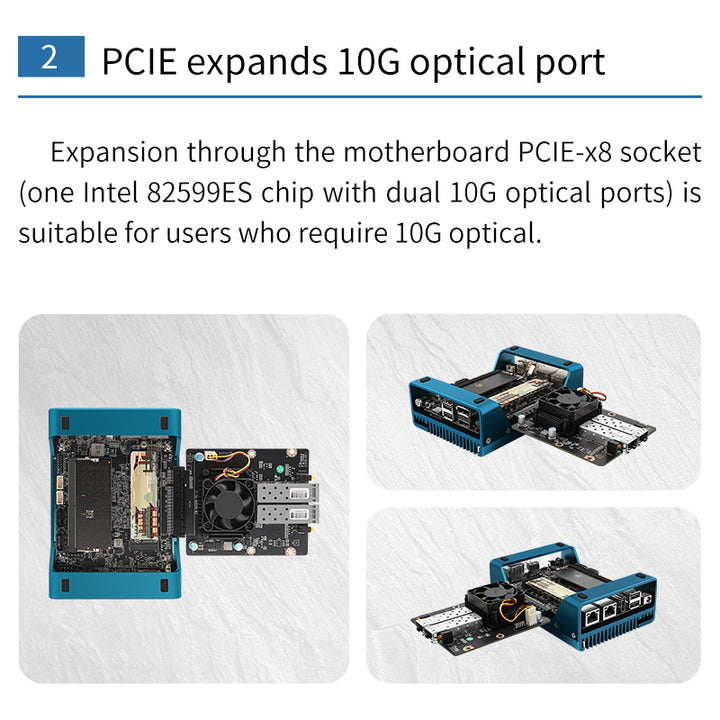

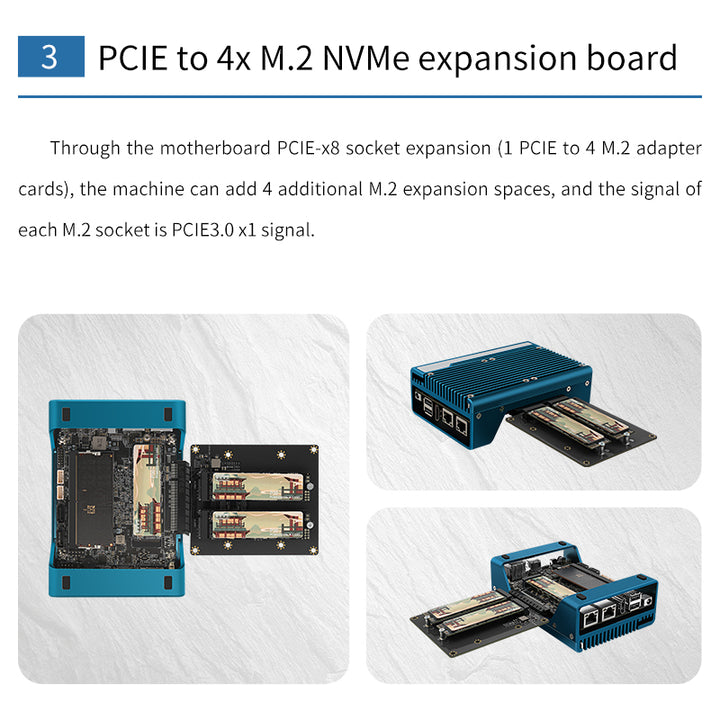

Expansion slot: PCle x8 slot supports expansion of M.2 NVMe hard drives, network cards, etc.
Serial port: 1 X RJ45_COM
BIOS: AMI BIOS auto-boot upon incoming call, GPIO, watchdog, PXE
Power consumption: basic power consumption 6-15W
System support: Windows/Linux/OpenWrt
Working environment: -20~70°C; Storage: -20~75°C
5%~90% relative humidity, no condensation
Motherboard size: 120mm (W) X 120mm (L)
Front I/O interface:
1* HDD indicator light
1* Power indicator light
1*HDM 1.4
1* PD 1.4
1*USB 2.0
1*TF slot
1*Type-C
1*BIOS reset button
1 * Power button
back:
1*DC12-19V
1*USB 2.0
1*HDMI 1.4
2 * Intel 2.5G network port
Internal I/O connector:
1*4PIN power supply base
1*TPM pin
1*M.2 socket compatible with 2242/2280
1 * 2.5-inch hard drive power supply holder
1*SO-DIMM DDR5 memory slot
2*SATA3.0 socket
1 * Small 4PIN power supply holder with temperature control fan
1 * Small 3PIN fan power supply socket
1* PCIE-x8 socket
Based on Intel 12th generation Alder Lake-N N100/octa-core 13-N305 low-power platform
Passive cooling, open design, open source drawings, specially designed for DIY/3D printing enthusiasts
A PCl-e x8 socket (PCle3.0 x4 signal) supports various network cards, hard drives and other expansions
Dual HDMI+DP+Type-C four display interfaces, supporting three-screen synchronous/asynchronous display
Dual intel i226-V integrated filter 2.5G RJ45 network port
1 SO-DIMM DDR5 slot compatible with 4800/5200/5600MHz
1 M.2NVMe socket (PCle3.0 x1 signal) compatible with 2242/2280 size
Dual SATA3.0 (6GB/s interface) dual 4pin power supply supports 2.5/3.5-inch hard drive
A TF card slot supports data storage and some system startup and boot functions
A 4-pin fan power supply socket supports temperature-controlled fans and a small 3-pin fan power supply socket
Specifications:
Processor: Intel N100/N200/i3-N305
Codename: Elkhart Lake
Display chip: Integrated 10th generation Intel Super Core graphics card
Display output: 2*HDMI1.4 1*DP 1*Type-C
Memory slot: 1*SO-DIMM DDR5 compatible with 4800/5200/5600MHZ
I/0 chip: IT8784E-i
USB: 4*USB2.0
Power supply: DC12V-19V (5.5*2.5)
Network card: 2*Intel i226-V 2.5G EJ45
Storage: 1*M.2 NVMe (PCle3.0x1 signal) 2*SATA3.0 (6GB/S interface) 1*TF
Expansion slot: PCle x8 slot supports expansion of M.2 NVMe hard drives, network cards, etc.
Serial port: 1 X RJ45_COM
BIOS: AMI BIOS auto-boot upon incoming call, GPIO, watchdog, PXE
Power consumption: basic power consumption 6-15W
System support: Windows/Linux/OpenWrt
Working environment: -20~70°C; Storage: -20~75°C
5%~90% relative humidity, no condensation
Motherboard size: 120mm (W) X 120mm (L)
Front I/O interface:
1* HDD indicator light
1* Power indicator light
1*HDM 1.4
1* PD 1.4
1*USB 2.0
1*TF slot
1*Type-C
1*BIOS reset button
1 * Power button
back:
1*DC12-19V
1*USB 2.0
1*HDMI 1.4
2 * Intel 2.5G network port
Internal I/O connector:
1*4PIN power supply base
1*TPM pin
1*M.2 socket compatible with 2242/2280
1 * 2.5-inch hard drive power supply holder
1*SO-DIMM DDR5 memory slot
2*SATA3.0 socket
1 * Small 4PIN power supply holder with temperature control fan
1 * Small 3PIN fan power supply socket
1* PCIE-x8 socket
Additional Information
| Model |
Intel-N200 PCI, Intel-i3-N305 PCI |
|---|---|
| Type |
No RAM No SSD, 8G RAM 128G SSD, 16G RAM 256G SSD, 16G RAM 512G SSD, 32G RAM 512G SSD, 32G RAM 1TB SSD, 32G RAM 2TB SSD |
| Plugs type |
US, EU, UK, AU |
